Magnetic Separators for Bulk Materials
Continuously operating magnetic separator rolls for removing ferromagnetic parts from fine-grained, free-flowing and dusty bulk materials.
Product Benefits
Our permanent magnetic separator rolls provide reliable separation with minimal maintenance requirements.
Continuous operation
Automatic separation without interruption of the production process
Adjustable discharge point
Magnetic system can be swiveled for optimal separation
High performance
Reliable operation practically without power loss
Maintenance-free
No special operating or maintenance costs
Application & Operation

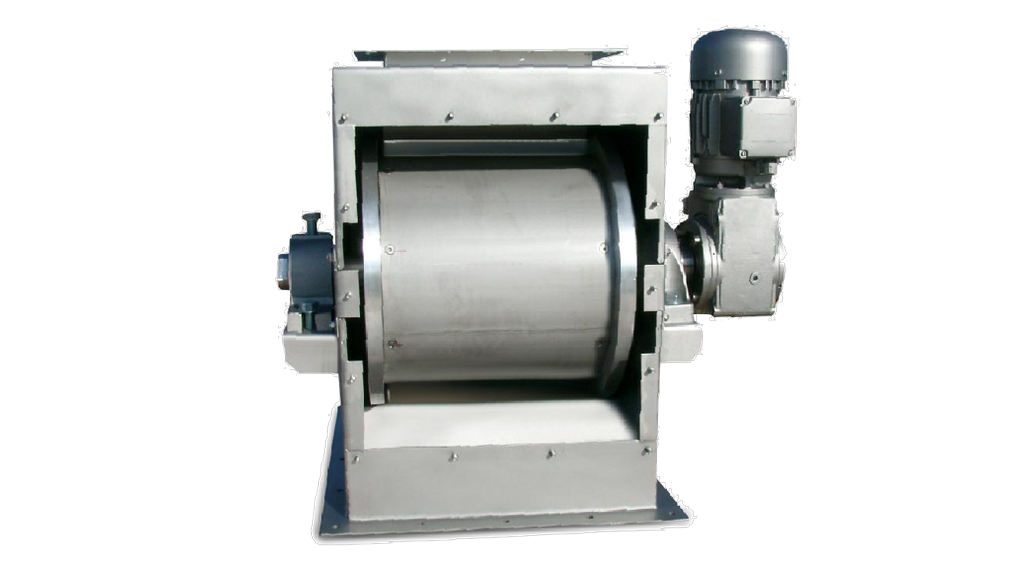

Permanent magnetic separator rolls are proven, powerful, continuously operating separation systems.
Application areas
Intended for automatic separation of ferromagnetic parts from fine-grained or dusty materials.
Suitable materials:
Protection functions:
Construction & Design
Main components:
The fixed permanent magnetic special system, whose force field penetrates the roll shell, catches the magnetizable iron parts to be separated above the roll shell.
Operation & Advantages
Process flow:
Advantages:
Applications & Technical Details
Discover the diverse applications and technical specifications of our separator rolls.
Application areas
Industrial applications
Technical Specifications
Technical details
Roll diameter
We typically manufacture our separator rolls in diameters of 219, 324 and 508 mm. The lengths depend on the respective application case.
Magnetic zone
The magnetic zone extends over approximately 200 degrees. The remaining part is the magnetic null zone for discharging the separated parts.
Adjustment options
By rotating the shaft journal, the magnetic system inside the separator roll can be swiveled to set the desired discharge point.
Individual adaptation: All separator rolls are tailored directly to your needs and you receive a sketch/drawing with your requirements inquiry.
Safety & Special Considerations
Important safety notes and operating tips for the safe use of our separator rolls.
Safety measures
When operating the separator roll with dusty or dust-generating media, the operator must take appropriate measures to prevent dust explosions.
Safety requirements:
Important notes
Explosion hazard
Spark formation in the area of the separator roll through static charging, induction or through metal parts colliding cannot be completely ruled out.
EX zone
The machine is not suitable for operation in EX zones.
Operating tips
Optimal operation
Material distribution
The more loosely the medium is fed to the separator roll, the better the two fractions can be separated from each other.
Particle ratio
For encapsulated or bonded particles, the ratio of Fe mass to total mass has a great influence on whether the entire part is separated or remains.
Downstream conveying equipment
Care must be taken to ensure that no backflow into the separator roll occurs through downstream conveying equipment.
Frequently Asked Questions
Answers to the most important questions about our products and their applications.
Specify a Separator Roll for Your Material Flow
Tell us the material, particle size, throughput, installation width and separation task. Our engineers will assess the suitable separator roll and installation arrangement.
