Which machines is the magnetic filter system suitable for?

The system is designed for grinding machines for tool processing, e.g. knives and cutting tools for mowers, choppers, etc.

How does separation and discharge work?

Fine metal particles are magnetically separated and continuously removed and transported via the wiper plate.

Can the cleaned fluid be reused?

Yes, the filtered grinding or coolant fluid can be directly returned to the grinding process.

How does the system reduce operating costs and environmental impact?

Through recirculation of process fluid, reduced consumption, longer service life and efficient disposal of abrasion.

How is maintenance performed?

Maintenance effort is very low. The filter system is robust and designed for industrial continuous operation.

Home

/Industries

/Agricultural Machinery Manufacturing & Grinding Processes

Reference Project

Magnetic Filtration for Tool Grinding & Agricultural Machinery

Efficient cleaning of grinding and coolant fluids in the production of mowing and cutting tools: Magnetic rollers and wiper systems ensure maximum machine uptime with minimal maintenance.

Central filter system for multiple machines

Highly efficient separation of fine metal particles

Automatic discharge for recycling/disposal

Cost savings through coolant recirculation

Low-maintenance and designed for continuous operation

Discuss project

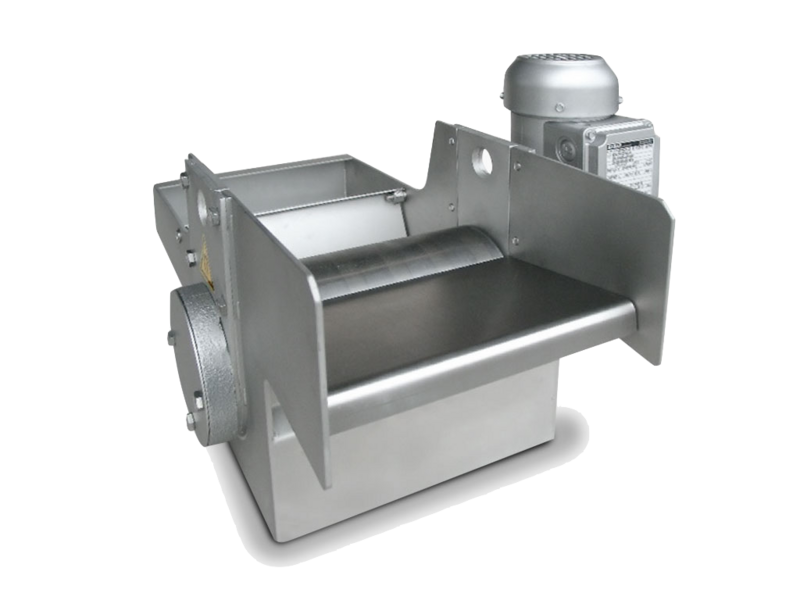

Magnetic filter system for tool grinding

Filtration and Metal Separation in Cutting Tool Manufacturing

Magnetic filter technology for reliable process safety and sustainability.

Practical Application

A leading manufacturer grinds cutting tools in-house. During grinding, fine-grained metal abrasion is generated, which mixes with grinding oil or emulsion. Our magnetic filter systems with high-performance magnetic roller, wiper plate and integrated conveyor belt efficiently remove the metal abrasion and return the cleaned fluid to the grinding process. This comprehensive solution addresses the critical challenges in industrial tool grinding operations, ensuring optimal machine performance while maintaining strict quality standards. The system's robust design and automated processes significantly reduce manual intervention, making it ideal for high-volume production environments where consistency and reliability are paramount. Advanced magnetic separation technology ensures that even microscopic metal particles are effectively captured, preventing tool damage and maintaining surface finish quality throughout extended production runs.

How It Works

Fine-grained metal particles are magnetically separated, continuously removed by the wiper plate and conveyed. The cleaned fluid is immediately available again or can be efficiently disposed of.

Solution Fine metal abrasion in coolant/grinding oil: High-performance magnetic roller reliably removes even the finest particles.
Solution High resource consumption and operating costs: Fluid recirculation saves costs and extends service life.
Solution Space requirements with high number of machines: One central filter system can supply multiple machines and optimizes space utilization and economy.
Solution Automatic recycling/disposal of abrasion: Conveyor belt automatically transports the separated metal abrasion to recycling or disposal station.

Technical Details

Key features of magnetic filter systems for tool grinding.

Parameter	Value
Filter Type	Magnetic roller with wiper plate
Automatic Discharge	Conveyor belt for continuous removal of metal abrasion
Connection Options	Multiple grinding machines per filter system
Operating Mode	Continuous operation, minimal maintenance effort
Material Abrasion	Fine-grained magnetizable metal abrasion (steel, alloys)
Coolant/Grinding Fluid	All standard grinding oils and emulsions
Resource Efficiency	Recirculation and extended service life of process fluids

Our Solution for Tool Grinding

Magnetic filter systems for grinding oils and emulsions – high performance and sustainable resource utilization.

High-Performance Magnetic Roller

Separates even the finest magnetizable metal particles directly from the grinding medium flow.

Wiper Plate and Conveyor Technology

Metal abrasion is continuously removed and automatically conveyed to recycling or disposal.

Fluid Recirculation

Filtered coolant and grinding fluid is directly returned to the process.

Central System Option

Multiple machines can be connected – saves space and reduces investment costs.

Industrial Design & Continuous Operation

Low-maintenance, robust filter and separation system for industrial grinding operations.

Sustainability & Environment

Resource efficiency, extended coolant life, reduced operating costs and environmental impact.

Frequently Asked Questions (FAQ)

Answers about magnetic filtration in industrial grinding processes.

Magnetic Filtration for Your Tool Production?

Optimize grinding processes and reduce operating costs as well as environmental impact – we're happy to advise you.

Get consultation now
